MODELO:
Diamond 9.1
DESCRIPCIÓN:
Diamond 9.1
Bass
130 mm
Tweeter
25 mm Dome
Power Handling
20 - 100 W
Nominal Imp.
6 ohm
Sensitivity (2.83V, 1M)
86
Frequency Range.
50 - 24 kHz
Crossover Frequency
2.3 kHz
Size (HxWxD)
296 x 194 x 278 mm

diamodn 9.1
MODELO:
Diamond 9.2
DESCRIPCIÓN:
Diamond 9.2
Bass
165 mm
Tweeter
25 mm Dome
Power Handling
20 - 100 W
Nominal Imp.
6 ohm
Sensitivity (2.83V, 1M)
86
Frequency Range.
45 - 24 kHz
Crossover Frequency
2.0 kHz
Size (HxWxD)
364 x 223 x 301 mm

diamond 9.2
MODELO:
Diamond 9.5
DESCRIPCIÓN:
Diamond 9.5
Bass
165 mm
Tweeter
25 mm Dome
Power Handling
30 - 150 W
Nominal Imp.
6 ohm
Sensitivity (2.83V, 1M)
88 dB
Frequency Range.
30 - 24 kHz
Crossover Frequency
140 Hz: 2.2 kHz
Size (HxWxD)
900 x 223 x 301 mm

diamond 9.5

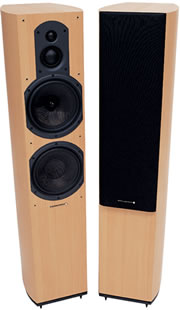

MODELO:
Diamond 9.6
DESCRIPCIÓN:
Diamond 9.6
Bass
2 x 200 mm
Tweeter
25 mm Dome
Power Handling
40 - 200 W
Nominal Imp.
6 ohm
Sensitivity (2.83V, 1M)
90 dB
Frequency Range.
28 - 24 kHz
Crossover Frequency
150 Hz: 1.0 kHz: 6.0 kHz
Size (HxWxD)
1080 x 247 x 331 mm

diamond 9.6
MODELO:
Diamond 9 CS
DESCRIPCIÓN:
Diamond 9 CS
Bass
2 x 130 mm
Tweeter
25 mm Dome
Power Handling
20 - 120 W
Nominal Imp.
6 ohm
Sensitivity (2.83V, 1M)
89 dB
Frequency Range.
70 - 24 kHz
Crossover Frequency
2.8 kHz
Size (HxWxD)
189 x 400 x 233 mm

diamond cs
MODELO:
Diamond 9 CM
DESCRIPCIÓN:
Diamond 9 CM
Bass
2 x 165 mm
Tweeter
25 mm Dome
Power Handling
30 - 150 W
Nominal Imp.
6 ohm
Sensitivity (2.83V, 1M)
90 dB
Frequency Range.
70 - 24 kHz
Crossover Frequency
1.0 kHz, 6 kHz
Size (HxWxD)
223 x 515 x 265 mm

diamond 9 cm
MODELO:
Diamond 9 DFS
DESCRIPCIÓN:
Diamond 9 DFS
Bass
2 x 100 mm
Tweeter
25 mm Dome
Power Handling
15 - 200 W
Nominal Imp.
6 ohm
Sensitivity (2.83V, 1M)
86 dB
Frequency Range.
70 - 24 kHz
Crossover Frequency
3.5 kHz
Size (HxWxD)
280 x 290 x 132 mm

diamond 9dfs
