MODELO:
Achromatic LCR
DESCRIPCIÓN:
Achromatic LCR
Transducer Complement
2-Way
Bass
3" 80 mm x 6
Tweeter
25 mm tex
Power
10-100 W
Nominal Imp.
4 ohm
Sensitivity (2.83V@1M)
86 dB
Frequency Range at -6dB
100Hz-24kHz
Format
small sealed
A/V shield
Yes
Size (HxWxD)
115 x 945 x 76 mm

Acromatic LCR

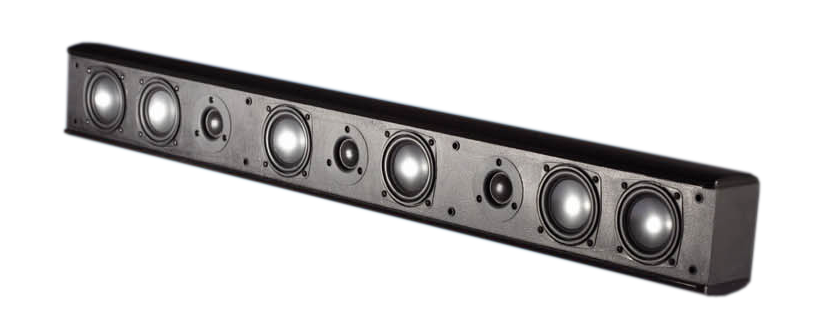

MODELO:
Diamond 10
DESCRIPCIÓN:
Opus 3
Transducer Complement
2-way
Format
Soundbar
Bass/Mid
4" 100mm (L)
4" 100mmx2 (C)
4" 100mm (R)
Tweeter
25mm tex
Power Handling
20 - 80w (L)
20 - 120w (C)
20 - 80w (R)
A/V Shield
yes
Nominal Impedance
6Ω
Sensitivity (2.83V @ 1M)
85dB
Frequency Range at -6 dB
75 Hz – 24 kHz (L)
65 Hz – 24kHz (C)
75 Hz – 24 kHz (R)
Size (HxWxD)
162.5 x 1000 x 168 mm

Diamond 10
